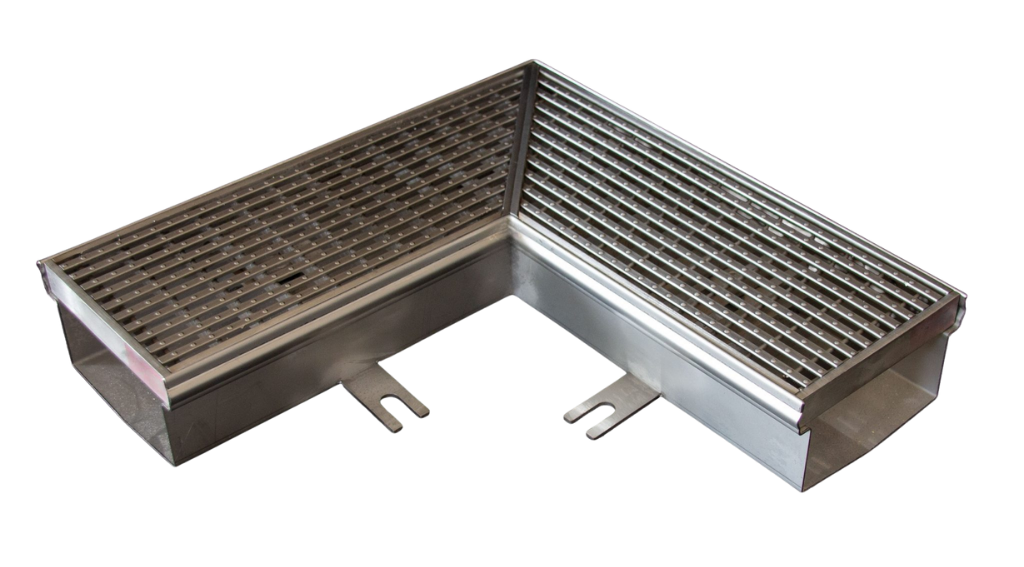

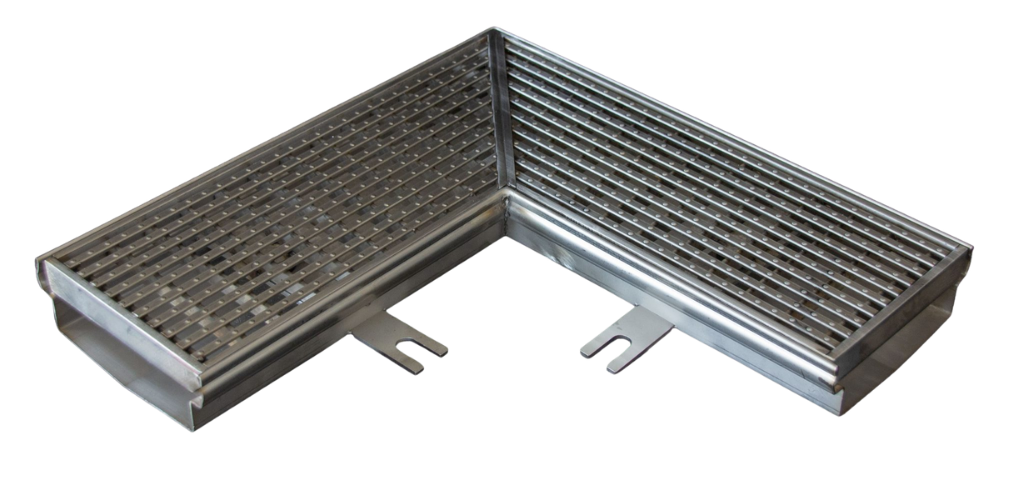

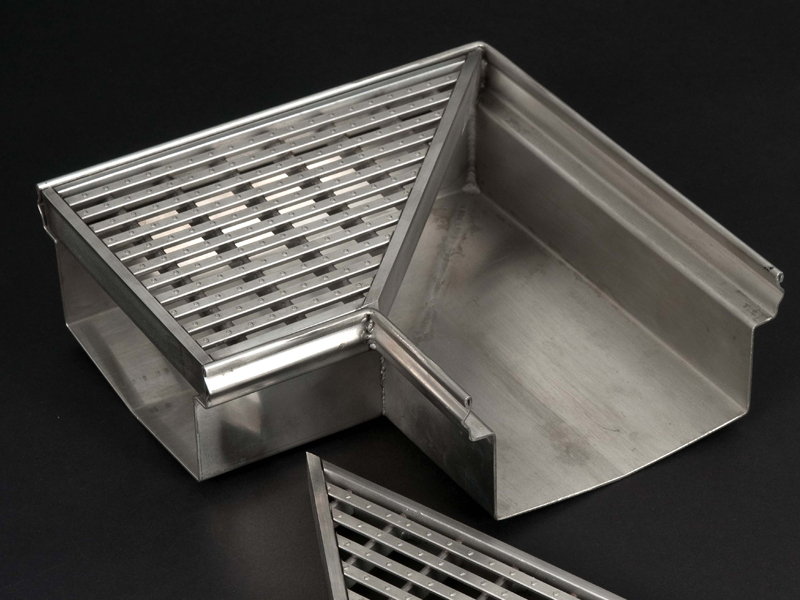

CLICK DRAIN™ – 90-Degree Corner Sections
Our 90-degree corner sections allow the CLICK DRAIN™ system to change direction effortlessly while maintaining a continuous flow. Designed for both function and form, these corner sections ensure that your drainage system adapts to the layout of your project without compromising efficiency.
The Advantage
- Enables 90-degree directional changes
- Click-fit connection for easy installation

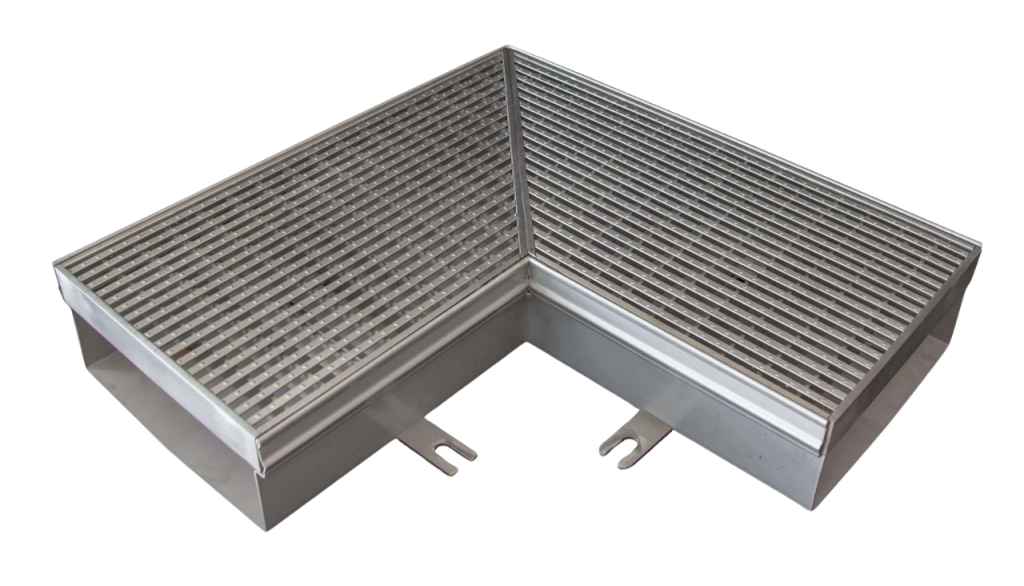

- Compatible with 100mm and 200mm channels
- Precision-engineered for perfect alignment
- Maintains consistent water flow around corners
- Made from high-quality 304/316 stainless steel
Perfect for Drain Layouts That Need
Perimeter drainage around buildings
Landscaping with right-angle turns
Complex drainage layouts requiring directional changes
Commercial spaces with geometric designs
Technical Specifications
| Specification | Details |
|---|---|
| Angle | 90 degrees |
| Channel Widths Available | 100mm and 200mm |
| Material | 304 / 316 Stainless Steel |
| Installation Method | Click-fit (tool-free) |

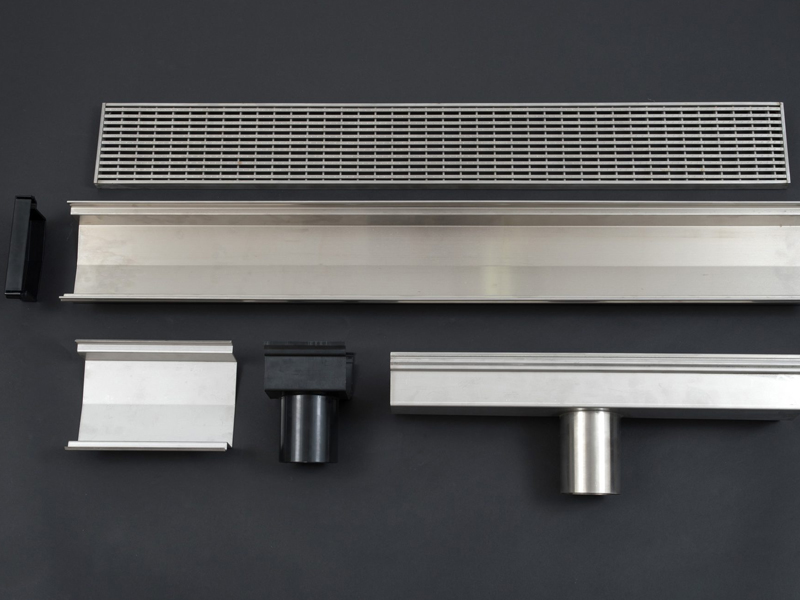

| Compatibility | All CLICK DRAIN™ modular components |
Frequently Asked Questions
Can the corner sections handle heavy loads?
Yes, they are designed to withstand the same load classes as the rest of the CLICK DRAIN™ system, suitable for pedestrian and vehicular traffic depending on the grating used.
Are custom angles available?
Standard corner sections are 90 degrees, but custom angles like 45 degrees are available upon request. Please contact our team for special requirements.
How do I install a corner section?
Installation is simple with our click-fit system. Align the corner section with the adjoining channels and snap them into place without any tools.
