OVERVIEW

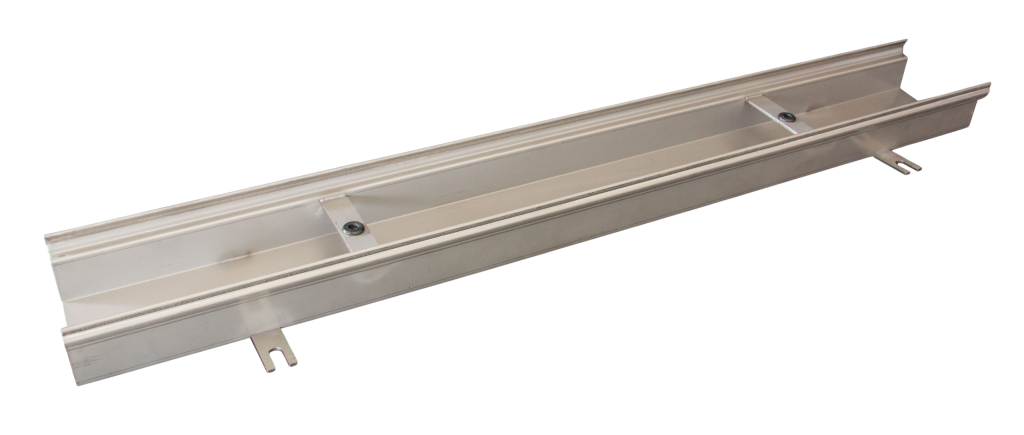

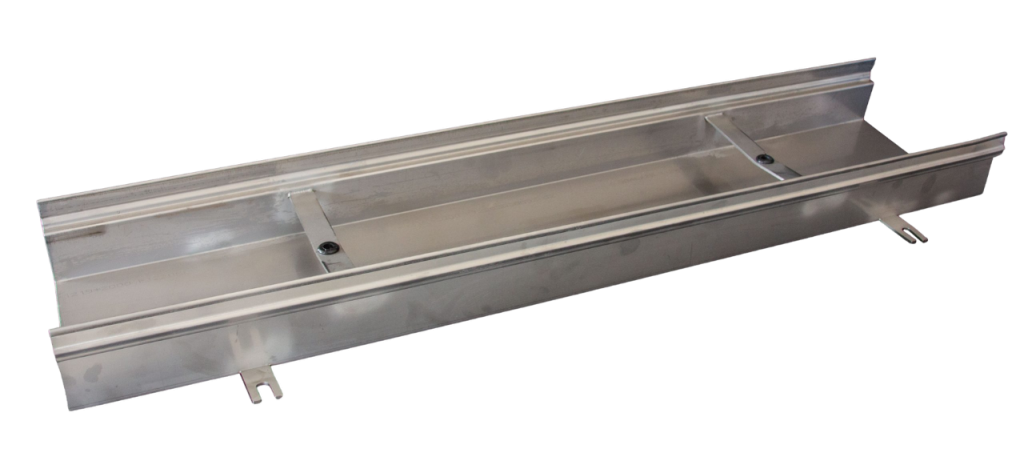

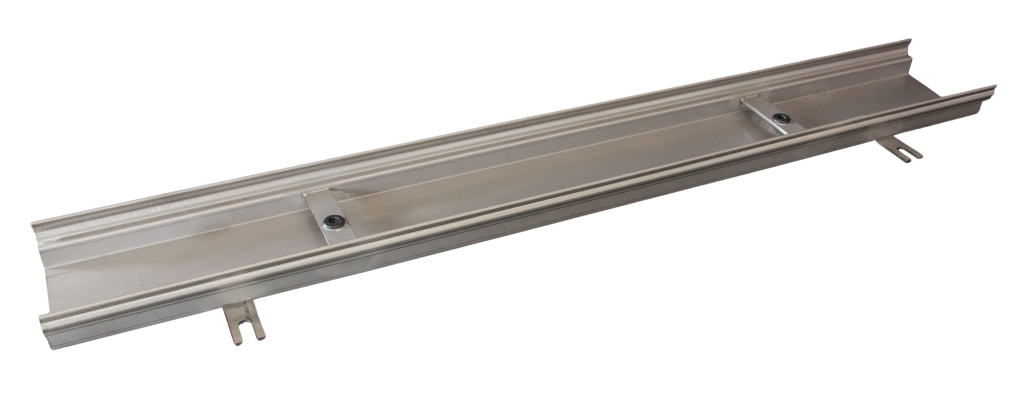

CLICK DRAIN® – Drainage Channels
Our drainage channels form the primary path for water collection and transport. Available in various widths and lengths, they are versatile, durable, and lighter than traditional polymer concrete alternatives, making them an ideal choice for a wide range of applications.
FEATURES
The Advantage
- Efficient water collection and transport
- Available in 1 or 2-meter lengths; can be cut with conventional tools
- Modular design for customizable configurations
- Lighter than polymer concrete, easier to handle and install
- Click-fit connections for seamless assembly
- Click-fit connections for seamless assembly
- Suitable for various load classes when combined with appropriate grating
- Made from high-quality 304/316 stainless steel
WHERE USED
Perfect for Drain Layouts That Need
Driveways and parking areas
Commercial and industrial facilities
Public spaces and pedestrian zones
Landscaping and garden drainage
Any area requiring efficient surface water management
SPECIFICATIONS
Technical Specifications
| Specification | 100mm Channel | 200mm Channel |
|---|---|---|
| Clear Opening Width | 100mm | 200mm |
| Standard Lengths | 1m, 2m (cuttable) | 1m, 2m (cuttable) |
| Material | 304/316 Stainless Steel | 304/316 Stainless Steel |
| Installation Method | Click-fit system | Click-fit system |
| Load Class (with appropriate grating) | Up to Class D | Up to Class D |
FAQ
Frequently Asked Questions
Can the drainage channels be cut to size?
Yes, our channels can be cut to the required length on-site using standard metal cutting tools, allowing for precise fitment.

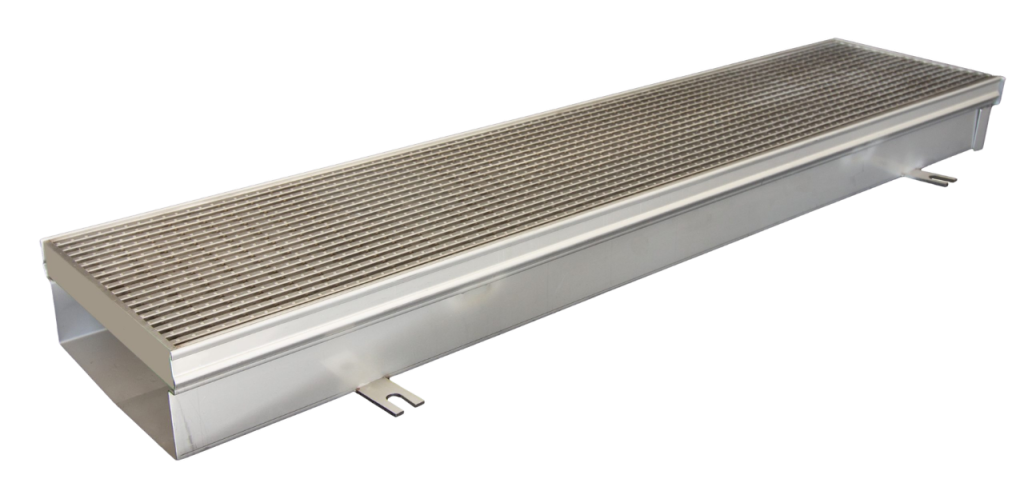

What grates are compatible with the channels?
Our drainage channels are compatible with both Heelguard Grating and Stainless Pressed Grating, depending on the load requirements and application.
How do I ensure the channels can handle heavy loads?
By selecting the appropriate grating (e.g., Heelguard Grating for up to Load Class D), the channels can be configured to handle heavy vehicular traffic.
